Custom PDCPD Structural Parts — Lightweight, Impact-Resistant, RIM-Molded

HongFox manufactures PDCPD (Polydicyclopentadiene) UAV fuselages, robot covers, yacht hulls, and EV enclosures via low-pressure RIM molding. Density 1.03 g/cm3, HDT up to 110 C, from 50 pcs.

Request Quote → View Products 💬 WhatsApp
5
Product Lines
30+
Countries Exported
500+
Projects Delivered
50 pcs
MOQ
25-35 d
Lead Time

Why PDCPD RIM Molding

Low-pressure reaction injection molding — the optimal balance of performance and economics

⚡

Low-Pressure RIM

Cavity pressure <1 MPa. Aluminum or steel tooling. Wall thickness 2-12 mm. Parts up to 2 m+ in a single shot. Cure time 30 s - 3 min.

🛡

Impact-Resistant & RF-Transparent

Unnotched impact 80 kJ/m2 — absorbs energy rather than shattering. Fully transparent to GPS, 5G, and RC telemetry signals.

🪪

Lightweight

Density 1.03 g/cm3 — ~40% weight savings vs. steel, comparable to aluminum but far tougher.

💰

Low-Volume Economics

Tooling cost 60-80% lower than injection molding. Economical from 50 to 5,000 pcs. No minimum penalty.

Product Families

Five core product lines, one manufacturing process — tailored to your application

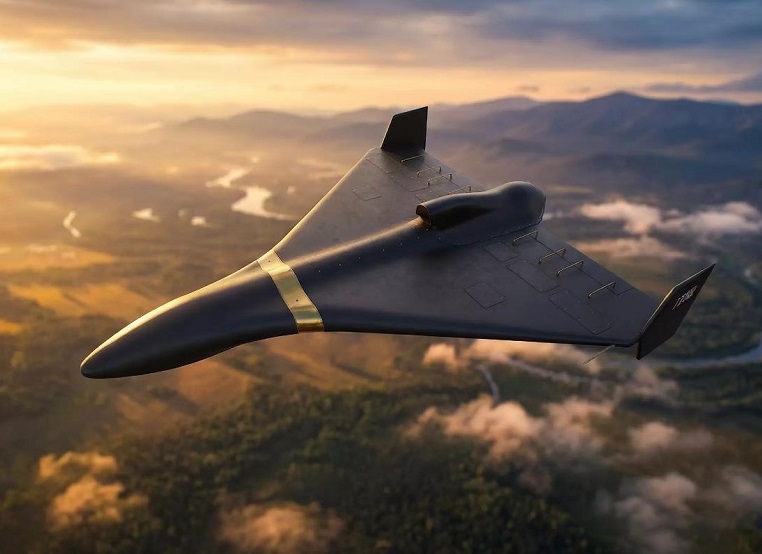

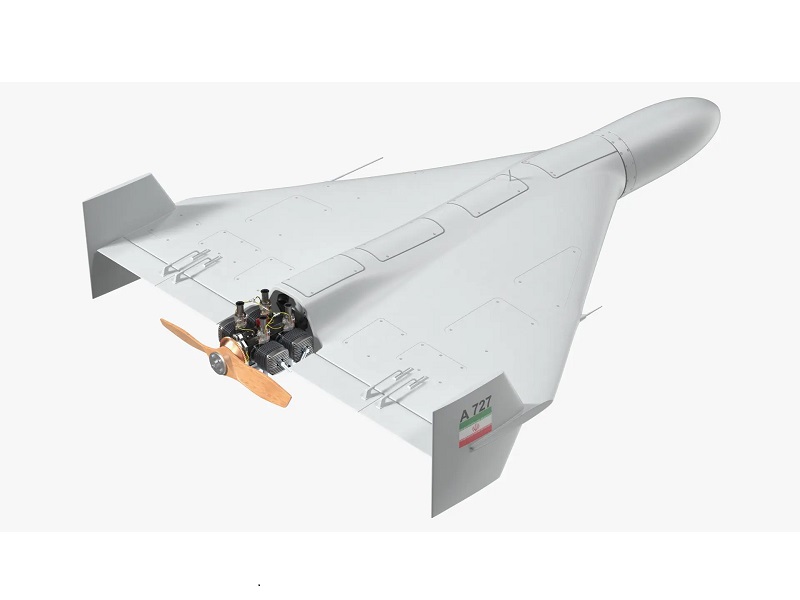

PDCPD UAV drone shells and fuselages

🛩 UAV / Drone Shells

Fuselages, arm covers, gimbal housings, VTOL bodies. RF-transparent, crash-tolerant, paint-ready.

RF-Transparent 80 kJ/m2 2-12 mm wall
View Details →

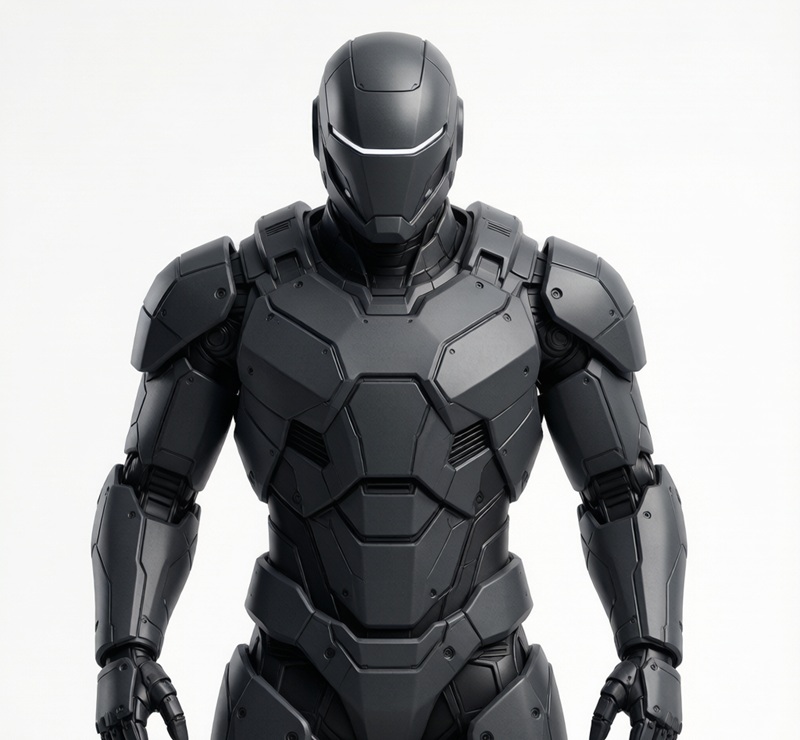

PDCPD robot covers and AGV shells

🤖 Robotics & AGV Covers

Quadruped shells, sensor pods, joint enclosures. Design freedom for complex curves.

Complex Curves Mounting Bosses Paint-Ready
View Details →

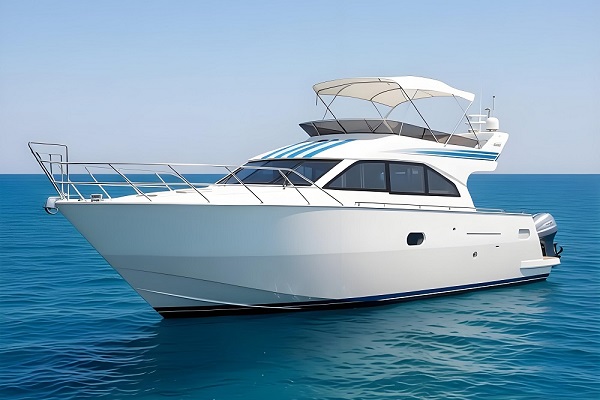

PDCPD yacht consoles and marine components

🏺 Marine & Yacht Components

Console shells, hatch covers, trim pieces. Zero water absorption, UV-stable, salt-spray resistant.

<0.1% Water Abs. Salt-Spray Resistant UV-Stable
View Details →

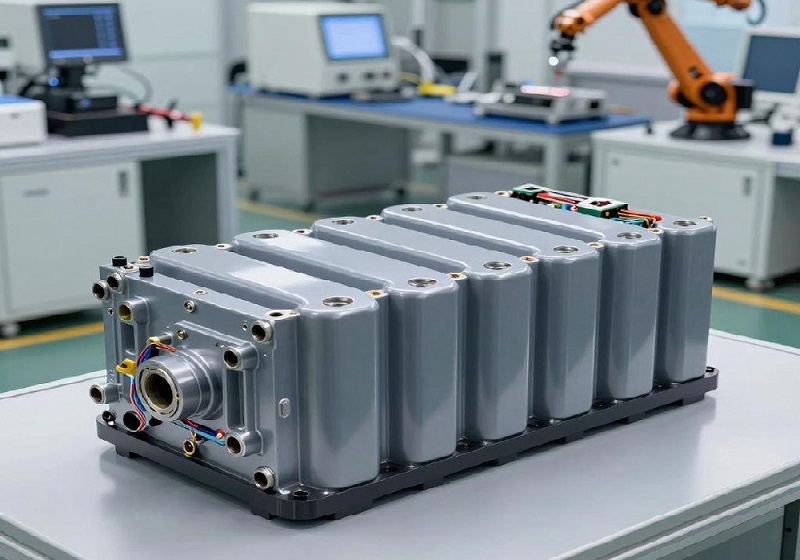

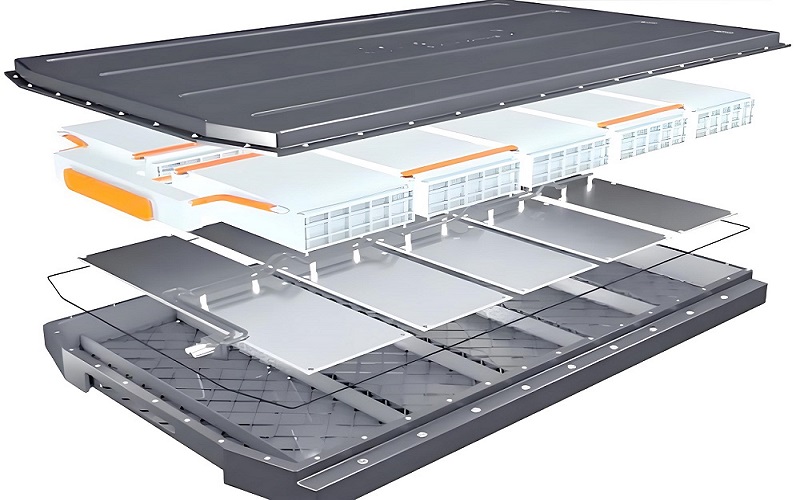

PDCPD EV battery enclosures and industrial housings

🔋 EV & Industrial Enclosures

Battery pack housings, inverter enclosures. Flame-retardant, IP67 sealable.

Flame-Retardant IP67 Capable -60 to 205 C
View Details →
PDCPD RIM molds and equipment

⚙ RIM Molds & Equipment

Aluminum and steel tooling, RIM dispensing systems — complete tooling solutions for PDCPD molding.

Aluminum/Steel Mold = Customer Owned 18-25 d First Article
View Details →

Typical PDCPD Material Properties

Verified data — test methods per GB/ISO standards

Property PDCPD Value Test Standard vs. Steel vs. Aluminum
Density1.03 g/cm3GB/T 1033~7.5x lighter~2.6x lighter
Tensile Strength51-60 MPaGB/T 1040LowerComparable
Flexural Modulus2.0-2.2 GPaGB/T 9341Lower~60%
Unnotched Impact25-80 kJ/m2GB/T 1043Far SuperiorSuperior
HDT (1.8 MPa)95-110 CGB/T 1634LowerComparable
Service Temperature-60 to 205 C—ComparableBetter
Water Absorption<0.1% (24 h)GB/T 1034SimilarBetter
Mold Shrinkage~0.8% linear—Low WarpageStable Dimensions

Our Process

From CAD file to delivered parts in as little as 25 days

1

CAD Review

DFM feedback in 3 working days

2

Tooling Build

Aluminum (fast) or steel (production)

3

RIM Trial

First article in 18-25 days

4

Inspection

100% dimensional check

5

Finish & Ship

Paint, pack — FOB in 25-35 days

Case Studies

Real projects for real customers — details anonymized for IP protection

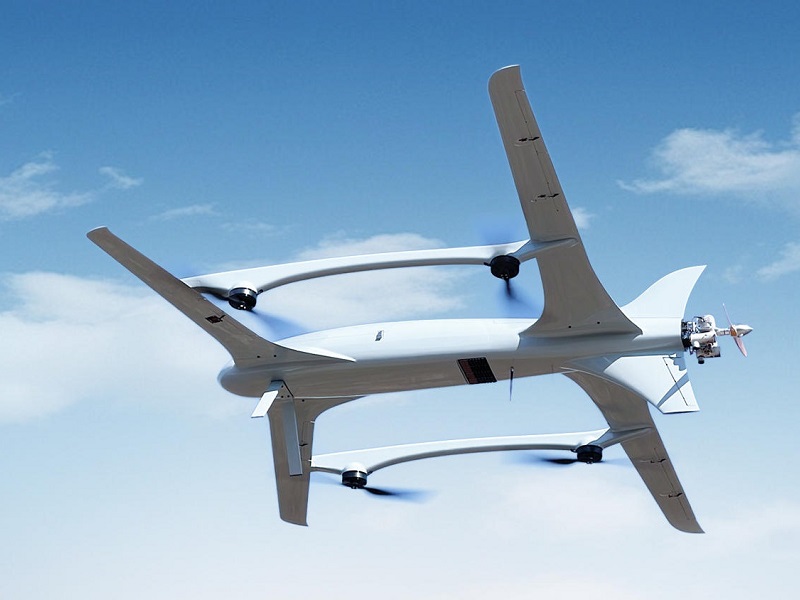

🛩 UAV Fuselage · Germany

1.8 m wingspan, 2.5 mm wall, 320 pcs delivered in 28 days. RF-transparent canopy for GNSS/telemetry integration.

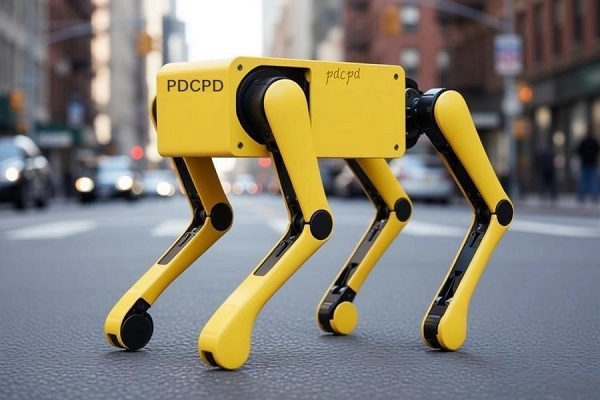

🤖 Quadruped Shell · USA

Full body cover, Class A paint finish, 500 pcs annual contract. Drop-tested from 3 m height.

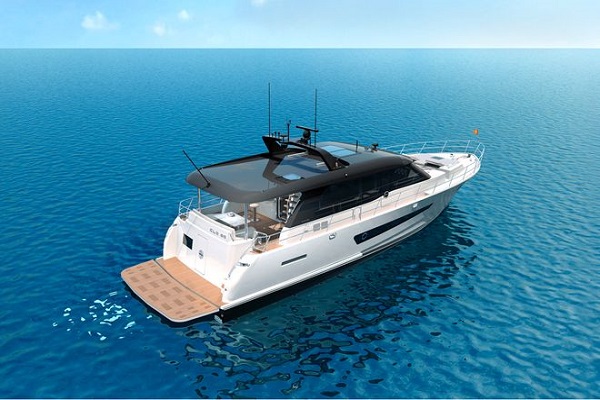

🏺 Yacht Console · Australia

UV-stable marine console, foam-core sandwich, 45 pcs pilot run. Zero water absorption after 6 months.

Certifications & Downloads

Quality assurance you can verify

📋
RoHS / REACH
📝
Material MSDS
🏆
ISO 9001

Frequently Asked Questions

Answers to top questions from engineers and procurement teams

What is the minimum wall thickness?
Reliable minimum is 2 mm. Small parts with stiffening ribs can achieve 1.5 mm. Thanks to the RIM process, even thick walls (up to 12 mm) show no sink marks.

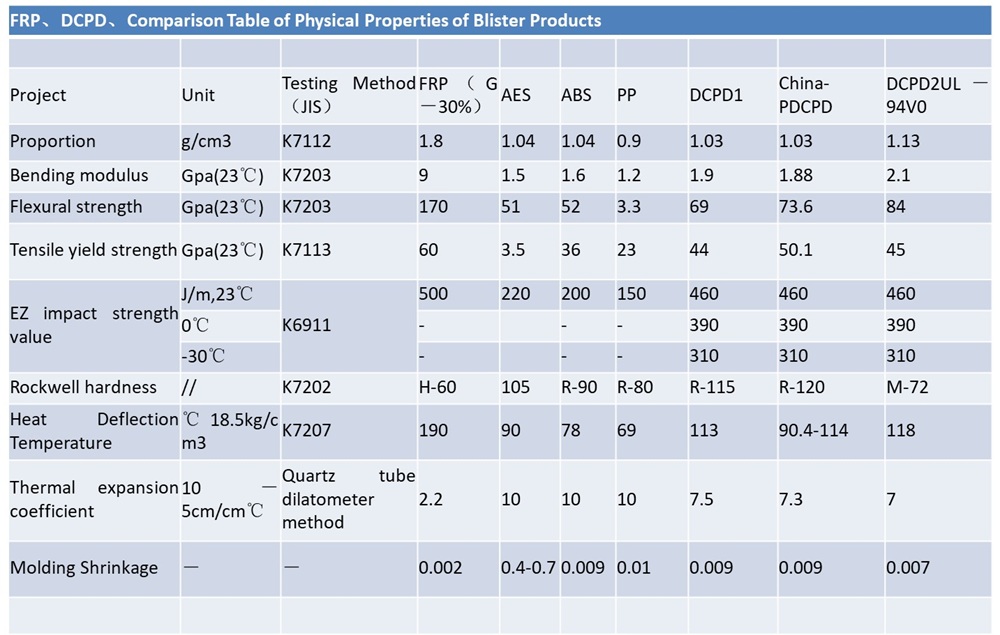

How does PDCPD compare to carbon fiber?
For non-load-bearing fairings and covers, PDCPD offers lower tooling cost, isotropic impact resistance, and full RF transparency. Carbon fiber remains superior for primary structures and ultimate stiffness. Many customers combine PDCPD outer skins with carbon fiber inner frames.
What is the lead time for 300 pcs?
Approximately 30 days, including aluminum tooling build and first article approval. Repeat orders after tooling qualification ship in 18-25 days.
Do you sign an NDA for IP protection?
Yes. We sign a standard NDA before exchanging STEP/CAD files. All customer designs are strictly confidential. Molds are marked as customer property.
Can PDCPD parts be painted?
Yes. PDCPD directly accepts PU, epoxy, and UV-cure topcoats without gel coat. We offer primer + topcoat in any RAL or Pantone color.
What is the minimum order quantity?
Aluminum tooling projects from 50 pcs. Steel tooling projects (long life) from 500 pcs. For design validation, we also offer CNC prototypes before committing to tooling.
